PC Equalizer GUI



PC Equalizer is a small and easy graphical user interface (GUI) software for EqualizerAPO which is a parametric equalizer for Windows. PC Equalizer works as an editor for a specific text file, that file is "Equalizer APO" configuration text file (config.txt), regularly located in "C:\Program Files\Equalizer APO\config\config.txt". This GUI designed for those who are looking for fixed frequencies equalizer, offering a quick and easy audio filtering with ability to control left-right channels (Stereo, Mono, Swap, Invert, Balance...etc.), Expand or contract Stereo using Pan\Expand processing feature. You can create effects using Multi-Delays feature e.g. Echoes, Delays, Reverb and many others. Also you can assign a preset to a program such as (Rock preset with Winamp, Classic preset with Windows Media Player, Pop preset with PotPlayer...etc.).

Features


  • 10 or 20 Band equalizer.
  • Fixed standard equalizer, Support all channels.
  • Control left and right channels (Stereo, Mono, Swap, Invert, Balance...etc.).
  • Expand or contract Stereo using Pan\Expand processing feature.
  • Multi-Delays feature will allow you to create wide range of Echoes, Delay, and Reverb; you can handle up to 16 taps (echoes).
  • Built-in presets, with ability to save or delete user's presets.
  • Assign a preset to a program such as (Winamp, Windows Media Player, PotPlayer...etc.), It monitors running programs saved in the "Program-Assigned Preset list" and will show tray notifications at each preset change.
  • Any saved preset will appear automatically while user controls equalizer.
  • Software installer and uninstaller. Free independent installation path.
  • Option to launch on startup, minimized to the System Tray.

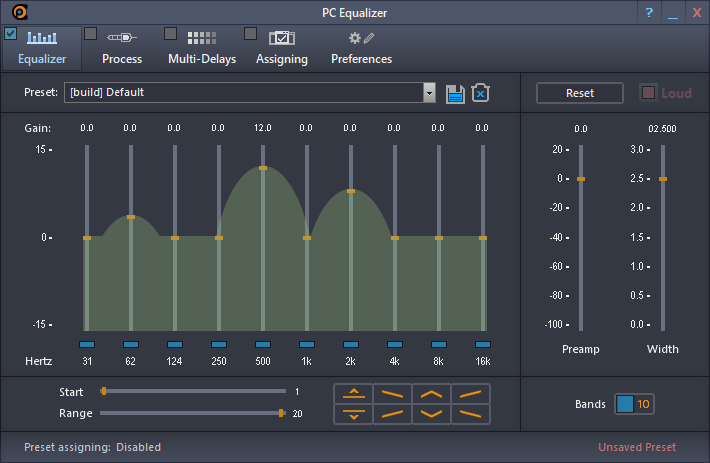

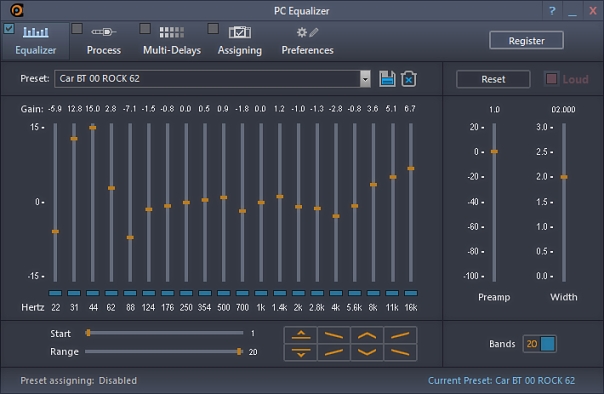

Equalizer


The Bandwidth in Octaves, Bandwidth refers to how much of the frequency range around a center frequency is altered when a peaking or cutting equalizer is used.
The higher the peak, the higher the signal level (amplitude); as you move away from the peak of the bell (center frequency), you can see that other frequencies around it are also boosted.

Multi Delays



1

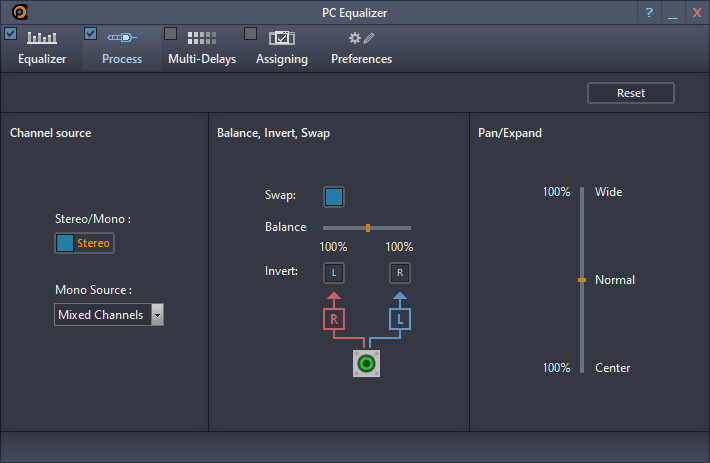

Process


The Stereo expand processing mode allows you to contract or expand the stereo image of a stereo recording, from dead center (mono), to completely panned wide (no center channel).
For realistic effects, you should not venture too far from Normal.

Notes:This effect works best with true stereo recordings and will not work with mono material. Panning a stereo recording toward the center can emphasize vocals; widening the image can de-emphasize vocals.

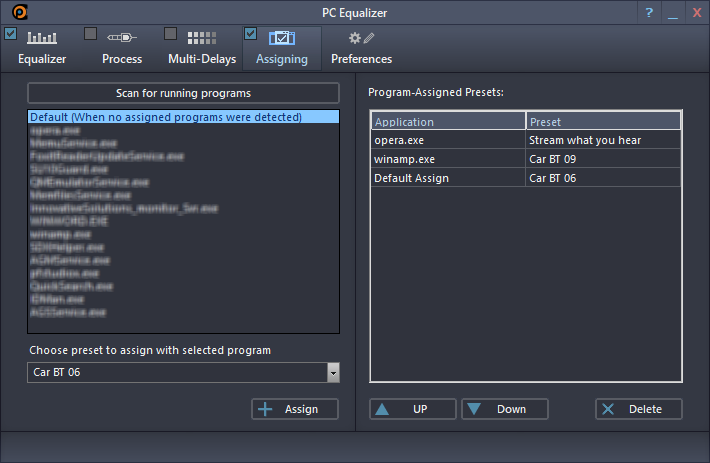

Assigning



How to assign a preset to a program?

      - Run the program that you want to assign with a preset.
      - On PC Equalizer's Toolbar Click "Assigning".
      - Click "Scan for running programs" to list all running programs.
      - Select the program from the list.
      - Choose the preset from the dropdown list below and click Add.
      - Arrange the "program-assigned preset" list according to priority.


User Assigned


In this picture it shows that winamp is working and assigned to "User - 19" preset.

Minimize



PC Equalizer checks if there is a new version available at each time it runs, also you can do it manually, Go to Preferences and click Update.


Update



PC Equalizer checks if there is a new version available at each time it runs, also you can do it manually, Go to Preferences and click Update.


How to install


1. Download and install "Equalizer APO", Available for 32 and 64 bit. Equalizer APO.
2. Restart windows.
3. Download and install latest version of PC Equalizer.

PC Equalizer Release Notes


What's new in version 1.3.2.1
·Fix several bugs.


PC Equalizer is free and non-commercial softwareDownload from sourceforge.net .
